TGB modular belt conveyors are devices that enable the transport of flexible packages or elements transported on paper and plastic pallets. The modular belt conveyor is also intended for the transport of irregularly shaped products.
The load-bearing element is a modular belt with a durable structure. Such a construction of the conveyor allows to obtain invariable gaps along the entire length of the belt, both on flat sections and in the vicinity of the return pulley. The constant and uniform surface of the transport medium guarantees no damage to the materials during transport and no rolling friction during transport. Automatic, semi-automatic and manual operation is possible for this conveyor.The control is carried out from a stationary panel.
The conveyor can be additionally equipped with the following modules: measuring the width and length of the package as well as smooth starting and braking with smooth speed regulation.
Advantages of the modular belt conveyor:
high efficiency – load up to 1500 kg and speed up to 12 m / min;
no damages to materials during transport;
no rolling friction;
thanks to the modularity of the belt, individual elements can be easily and quickly replaced in case of damage;

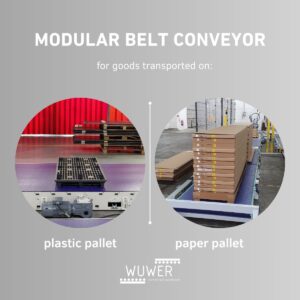

Conveyors with a modular belt enable the transport of packages on:
Wooden baseboard;
Plastic or paperpalett;
Technical data
Photos
Speed
V
9-12 m/min
Maximum load
Q
1500 kg
Working width
RL
900, 1000 or 1200 mm
Working length of the conveyor
L
2500 – 6000 mm
Working height
H
300 mm from the floor level
The values given are for standard devices.We implement projects in accordance with individual customer requirements.
